Adding Predictability to Fleet Communications During Solar Flare

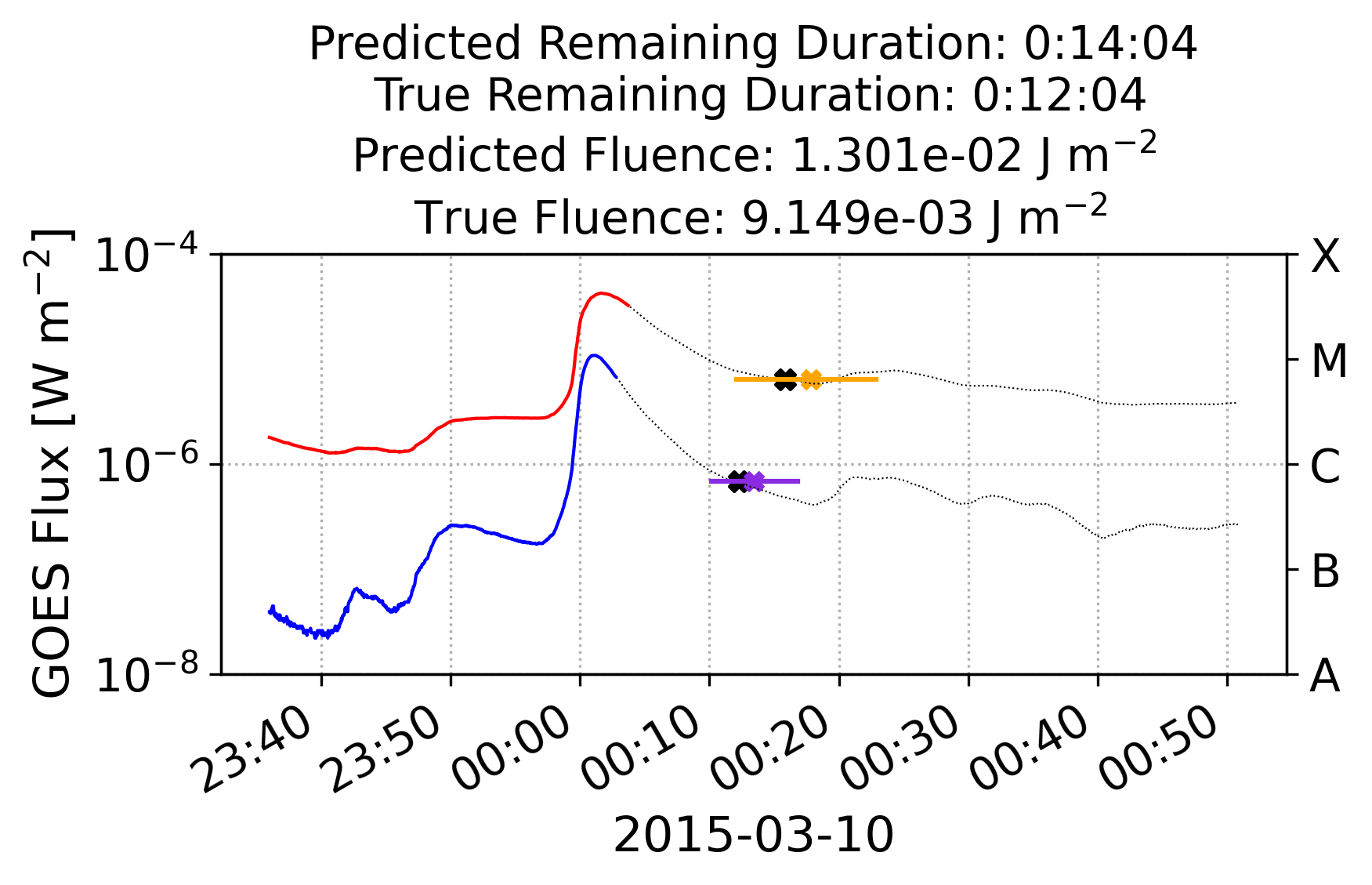

This is a prediction the model makes for a medium sized solar flare, predictions for two X-ray passbands in orange/violet compared to the true values in black. This modeling could lead to forecasting in real time, providing some prediction to the fleet for how long a flare might actually last. (U.S Navy graphic provided by Jeff Reep, Ph.D., U.S. Naval Research Laboratory)
